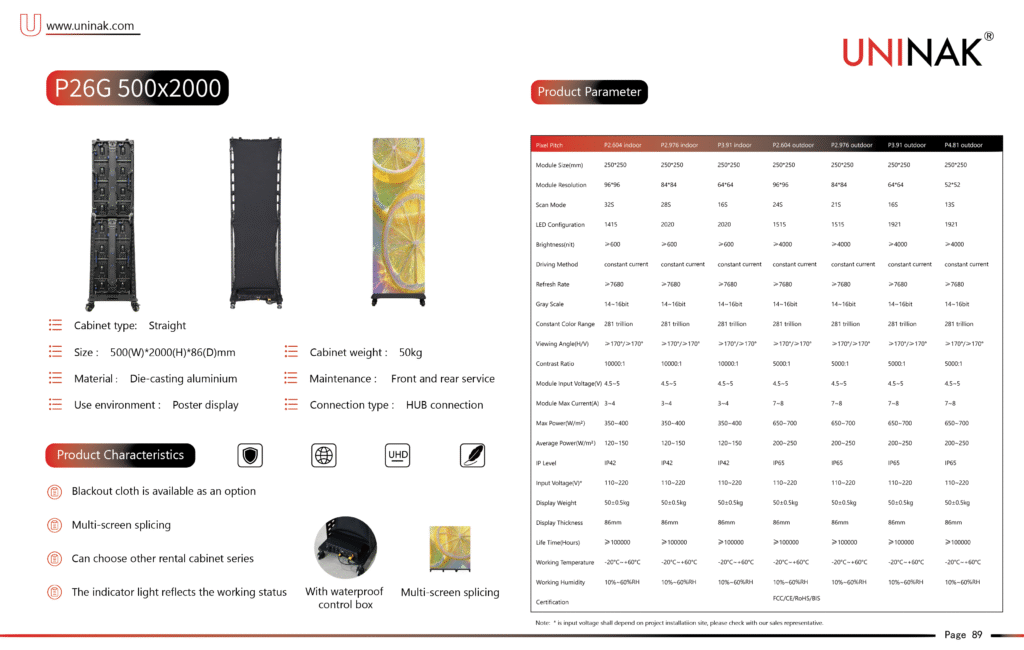

- Product Parameter
| Pixel Pitch | P2.604 indoor | P2.976 indoor | P3.91 indoor | P2.604 outdoor | P2.976 outdoor | P3.91 outdoor | P4.81 outdoor |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Module Resolution | 96*96 | 84*84 | 64*64 | 96*96 | 84*84 | 64*64 | 52*52 |
| Scan Mode | 32S | 28S | 16S | 24S | 21S | 16S | 13S |
| LED Configuration | 1415 | 2020 | 2020 | 1515 | 1515 | 1921 | 1921 |
| Brightness(nit) | ≥600 | ≥600 | ≥600 | ≥4000 | ≥4000 | ≥4000 | ≥4000 |
| Driving Method | constant current | constant current | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
| Gray Scale | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit | 14~16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage(V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current(A) | 3~4 | 3~4 | 3~4 | 7~8 | 7~8 | 7~8 | 7~8 |
| Max Power(W/m²） | 350~400 | 350~400 | 350~400 | 650~700 | 650~700 | 650~700 | 650~700 |
| Average Power(W/m²） | 120~150 | 120~150 | 120~150 | 200~250 | 200~250 | 200~250 | 200~250 |
| IP Level | IP42 | IP42 | IP42 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage(V)* | 110~220 | 110~220 | 110~220 | 110~220 | 110~220 | 110~220 | 110~220 |
| Display Weight | 50±0.5kg | 50±0.5kg | 50±0.5kg | 50±0.5kg | 50±0.5kg | 50±0.5kg | 50±0.5kg |
| Display Thickness | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm | 86mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH |
| Certification | FCC/CE/RoHS/BIS | ||||||
