Uninak
1.Seamless splicing
2.Thin and light design
3.Stainless steel fast lock
4.Good waterproof performance
- Product Detail

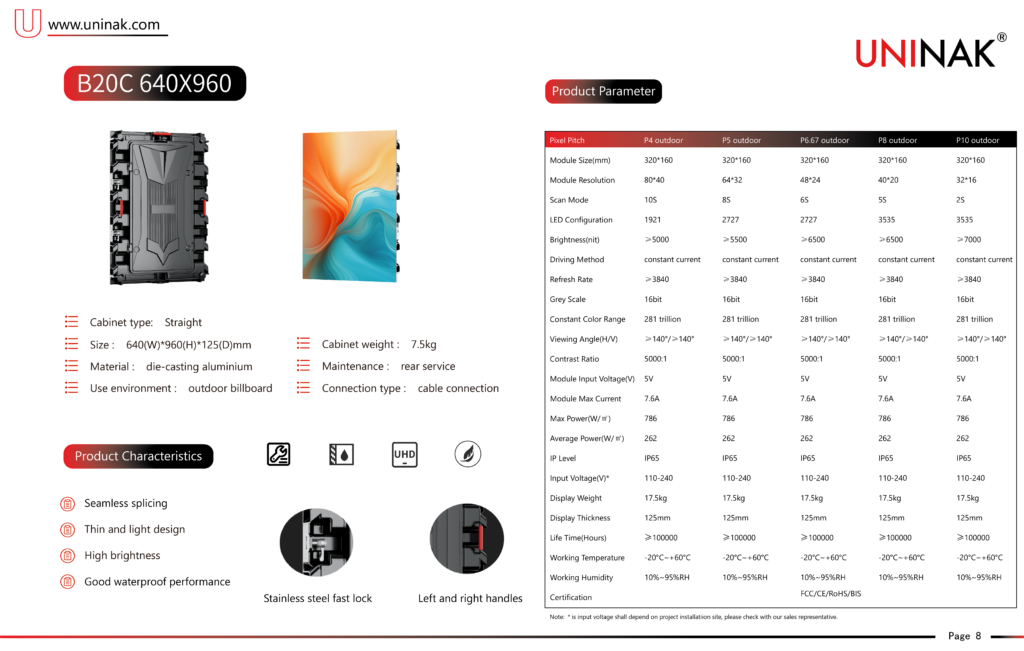

- Product Parameter
- FAQs
- Packing & Delivery
| Pixel Pitch | P4 outdoor | P5 outdoor | P6.67 outdoor | P8 outdoor | P10 outdoor |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Scan Mode | 10S | 8S | 6S | 5S | 2S |
| LED Configuration | 1921 | 2727 | 2727 | 3535 | 3535 |
| Brightness(nit) | ≥5000 | ≥5500 | ≥6500 | ≥6500 | ≥7000 |
| Driving Method | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° |
| Contrast Ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Module Input Voltage(V) | 5V | 5V | 5V | 5V | 5V |
| Module Max Current | 7.6A | 7.6A | 7.6A | 7.6A | 7.6A |
| Max Power(W/㎡) | 786 | 786 | 786 | 786 | 786 |
| Average Power(W/㎡) | 262 | 262 | 262 | 262 | 262 |
| IP Level | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Voltage(V)* | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 |
| Display Weight | 17.5kg | 17.5kg | 17.5kg | 17.5kg | 17.5kg |
| Display Thickness | 125mm | 125mm | 125mm | 125mm | 125mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS | ||||
Q: What does your company do?
A: Our company make industrial professional led display products. We are in the field for more than 5 years and are professional for the led research&solutions.
We focus on Led Rental – Stage Displays and Fixed Installation solutions where you can install your display on many different kind of places.
Q: Where can we buy your products?
A: Please contact us by Inquiry@uninak.com. We sell the product world wide, the product will be shipped from China. Let us know from what country you are from and we will give you also a free consult for your led display solution.
Q: What kind of led display will suit the best for my solution?
A:We are a professional manufacturer of Rental led screens and Fixed installation displays. If you have a certain project please contact us.
What we will need from you to give you the perfect solution:
1. How will you use the led display?
2. Will you move the display or will it always be on a fixed location?
3. Is the led display used for indoor or outdoor?
4. Will the sun shines on that location? So do you need more brightness on the led screen?
5. What is the distance from the public and the led screen?
6. Is there space behind the led display for a person to do maintenance?
7. If not you probably will need a front service screen solution.
8. Any specific resolution you want to the screens?
