- Product Detail
- Product Parameter
- Packing & Delivery

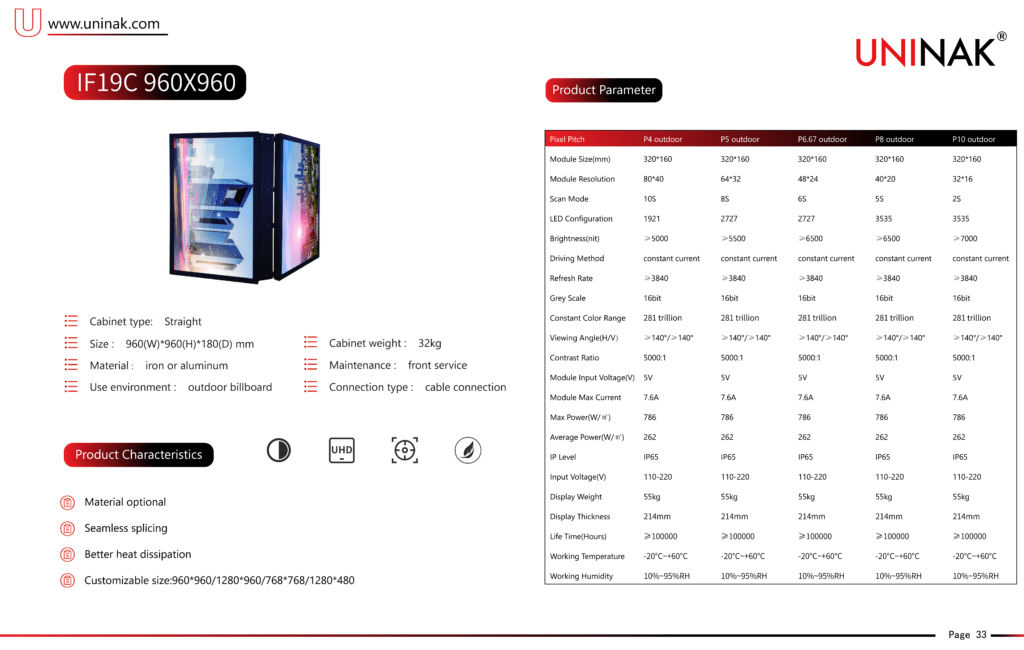

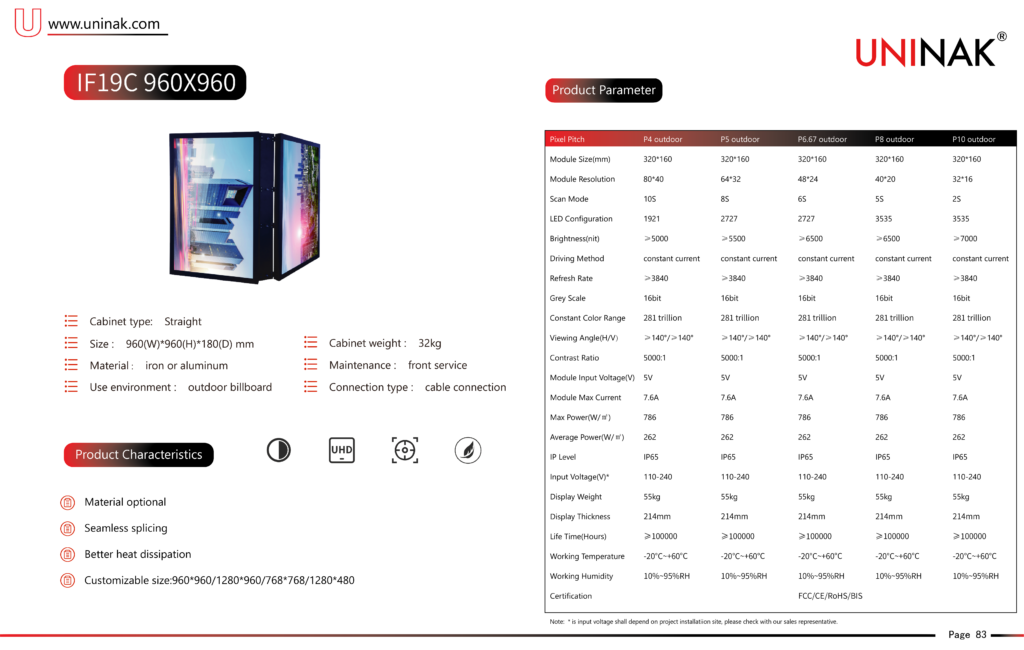

| Pixel Pitch |
P4 outdoor |
P5 outdoor |
P6.67 outdoor |
P8 outdoor |
P10 outdoor |
| Module Size(mm) |
320*160 |
320*160 |
320*160 |
320*160 |
320*160 |
| Module Resolution |
80*40 |
64*32 |
48*24 |
40*20 |
32*16 |
| Scan Mode |
10S |
8S |
6S |
5S |
2S |
| LED Configuration |
1921 |
2727 |
2727 |
3535 |
3535 |
| Brightness(nit) |
≥5000 |
≥5500 |
≥6500 |
≥6500 |
≥7000 |
| Driving Method |
constant current |
constant current |
constant current |
constant current |
constant current |
| Refresh Rate |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
| Grey Scale |
16bit |
16bit |
16bit |
16bit |
16bit |
| Constant Color Range |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
281 trillion |
| Viewing Angle(H/V) |
≥140°/≥140° |
≥140°/≥140° |
≥140°/≥140° |
≥140°/≥140° |
≥140°/≥140° |
| Contrast Ratio |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
5000:1 |
| Module Input Voltage(V) |
5V |
5V |
5V |
5V |
5V |
| Module Max Current |
7.6A |
7.6A |
7.6A |
7.6A |
7.6A |
| Max Power(W/㎡) |
786 |
786 |
786 |
786 |
786 |
| Average Power(W/㎡) |
262 |
262 |
262 |
262 |
262 |
| IP Level |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
| Input Voltage(V)* |
110-240 |
110-240 |
110-240 |
110-240 |
110-240 |
| Display Weight |
55kg |
55kg |
55kg |
55kg |
55kg |
| Display Thickness |
214mm |
214mm |
214mm |
214mm |
214mm |
| Life Time(Hours) |
≥100000 |
≥100000 |
≥100000 |
≥100000 |
≥100000 |
| Working Temperature |
-20°C~+60°C |
-20°C~+60°C |
-20°C~+60°C |
-20°C~+60°C |
-20°C~+60°C |
| Working Humidity |
10%~95%RH |
10%~95%RH |
10%~95%RH |
10%~95%RH |
10%~95%RH |
| Certification |
FCC/CE/RoHS/BIS |
