Uninak
- Product Details

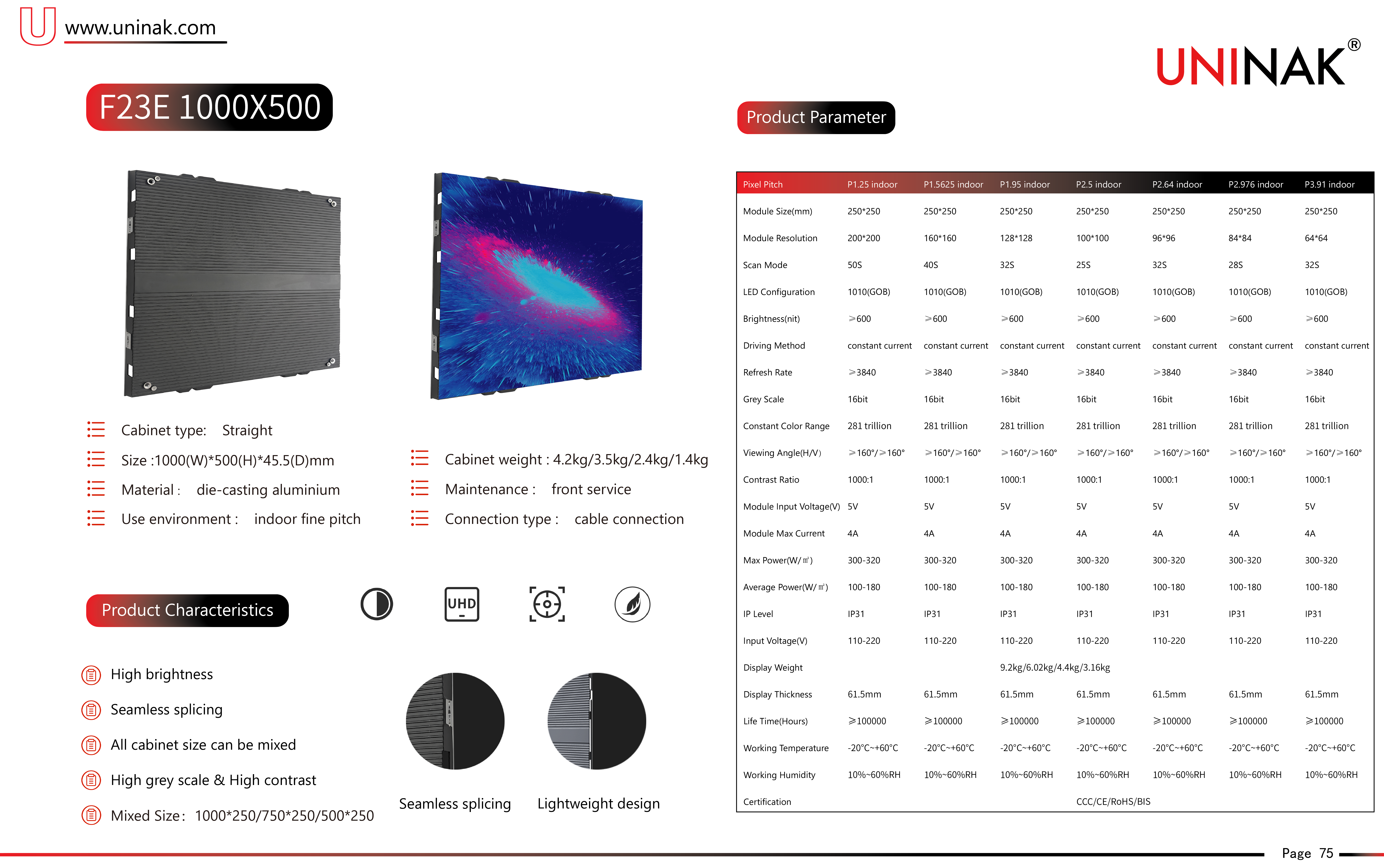

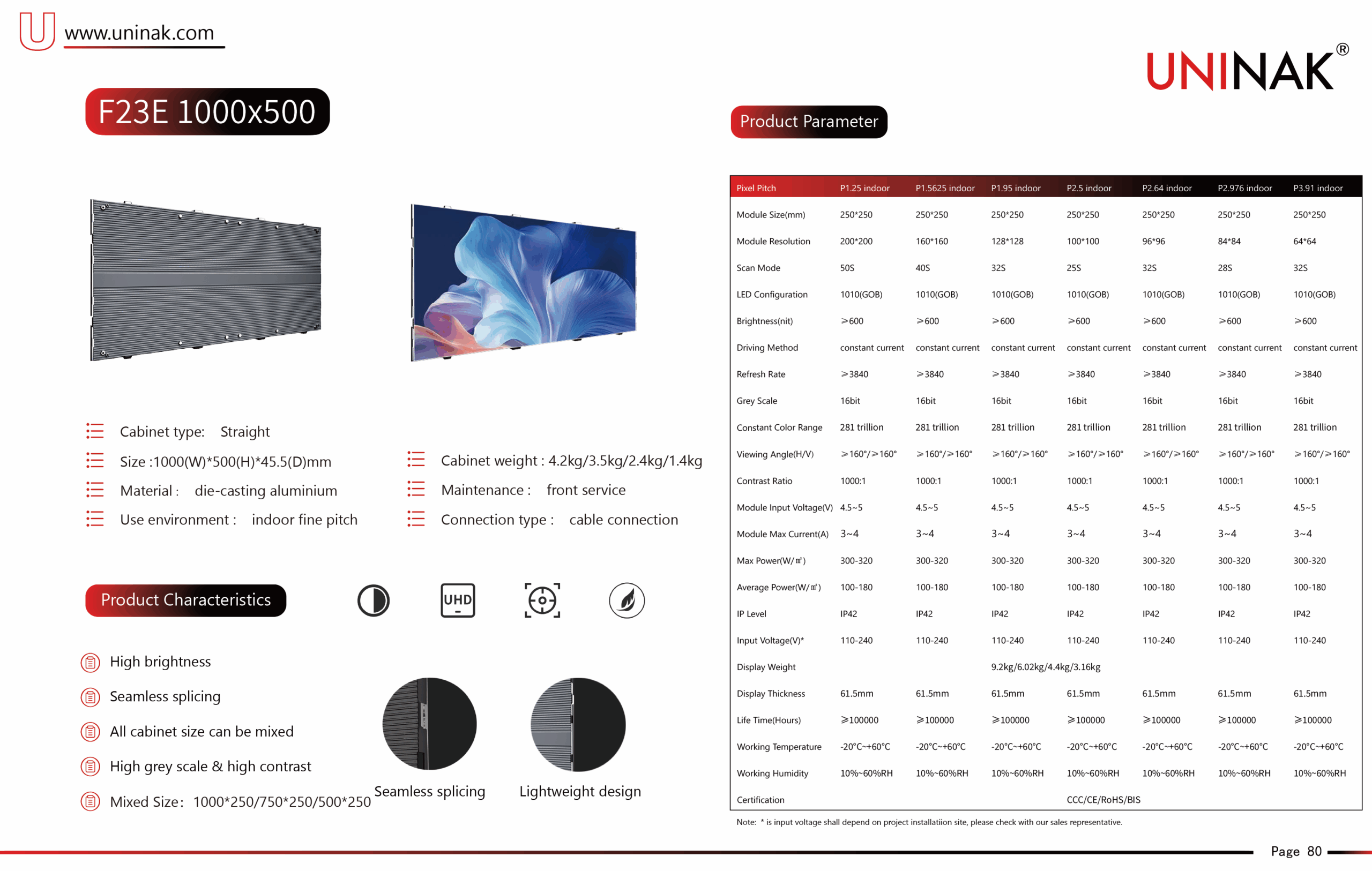

- Product Parameter
| Pixel Pitch | P1.25 indoor | P1.5625 indoor | P1.95 indoor | P2.5 indoor | P2.64 indoor | P2.976 indoor | P3.91 indoor |
| Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Module Resolution | 200*200 | 160*160 | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 |
| Scan Mode | 50S | 40S | 32S | 25S | 32S | 28S | 32S |
| LED Configuration | 1010(GOB) | 1010(GOB) | 1010(GOB) | 1010(GOB) | 1010(GOB) | 1010(GOB) | 1010(GOB) |
| Brightness(nit) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Driving Method | constant current | constant current | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Module Input Voltage(V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current(A) | 3~4 | 3~4 | 3~4 | 3~4 | 3~4 | 3~4 | 3~4 |
| Max Power(W/㎡) | 300-320 | 300-320 | 300-320 | 300-320 | 300-320 | 300-320 | 300-320 |
| Average Power(W/㎡) | 100-180 | 100-180 | 100-180 | 100-180 | 100-180 | 100-180 | 100-180 |
| IP Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Input Voltage(V)* | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 |
| Display Weight | 9.2kg/6.02kg/4.4kg/3.16kg | ||||||
| Display Thickness | 61.5mm | 61.5mm | 61.5mm | 61.5mm | 61.5mm | 61.5mm | 61.5mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH |
| Certification | CCC/CE/RoHS/BIS | ||||||
