Uninak
- Product Details

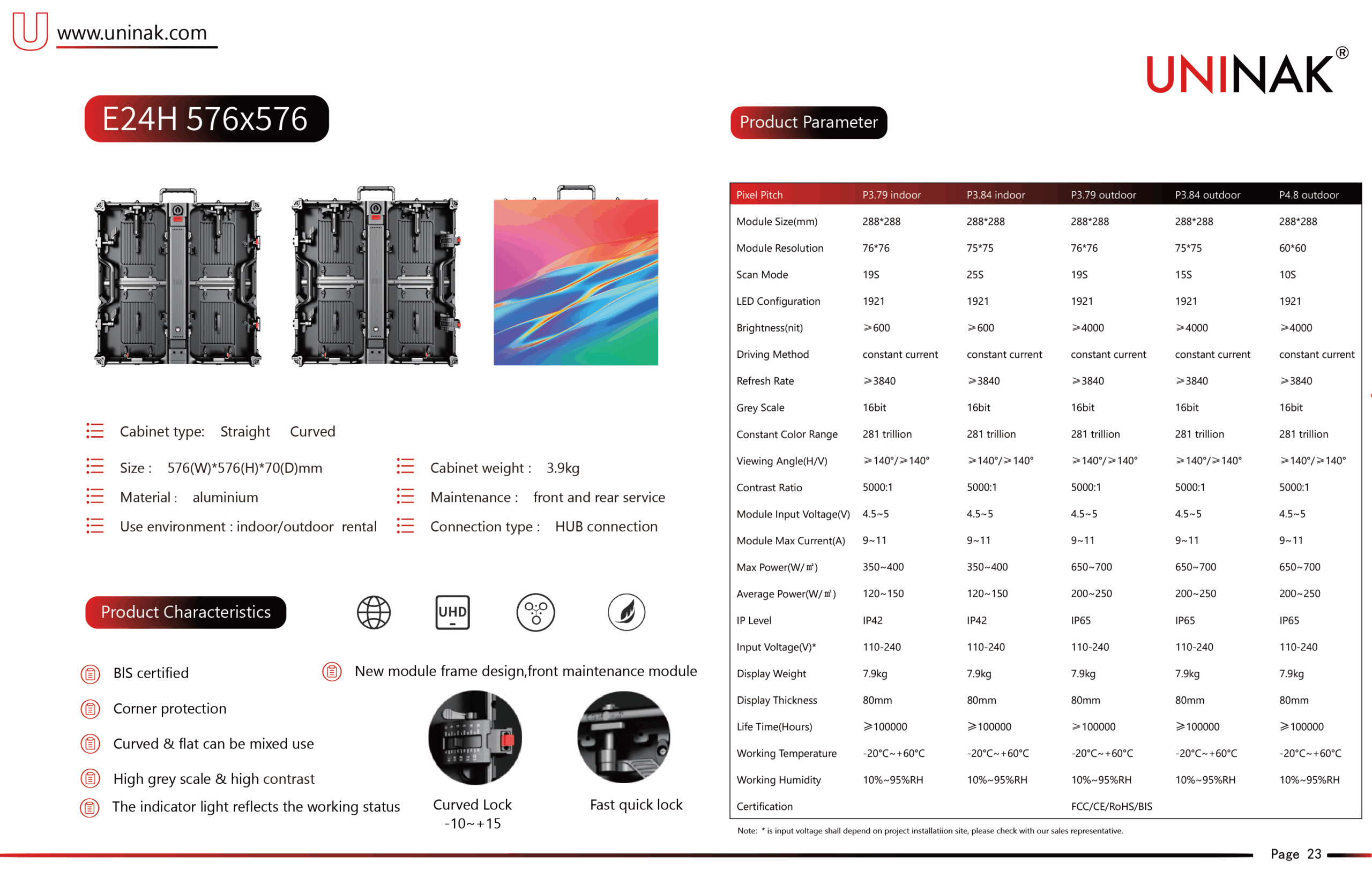

- Product Parameter
| Pixel Pitch | P3.79 indoor | P3.84 indoor | P3.79 outdoor | P3.84 outdoor | P4.8 outdoor |
| Module Size(mm) | 288*288 | 288*288 | 288*288 | 288*288 | 288*288 |
| Module Resolution | 76*76 | 75*75 | 76*76 | 75*75 | 60*60 |
| Scan Mode | 19S | 25S | 19S | 15S | 10S |
| LED Configuration | 1921 | 1921 | 1921 | 1921 | 1921 |
| Brightness(nit) | ≥600 | ≥600 | ≥4000 | ≥4000 | ≥4000 |
| Driving Method | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Module Input Voltage(V) | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 | 4.5~5 |
| Module Max Current(A) | 9~11 | 9~11 | 9~11 | 9~11 | 9~11 |
| Max Power(W/㎡) | 350~400 | 350~400 | 650~700 | 650~700 | 650~700 |
| Average Power(W/㎡) | 120~150 | 120~150 | 200~250 | 200~250 | 200~250 |
| IP Level | IP42 | IP42 | IP65 | IP65 | IP65 |
| Input Voltage(V)* | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 |
| Display Weight | 7.9kg | 7.9kg | 7.9kg | 7.9kg | 7.9kg |
| Display Thickness | 80mm | 80mm | 80mm | 80mm | 80mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS | ||||
