1.High constrast
2.High grey scale
3.Seamless splicing
4.Easy to Maintain & Long Life
- Product Detail

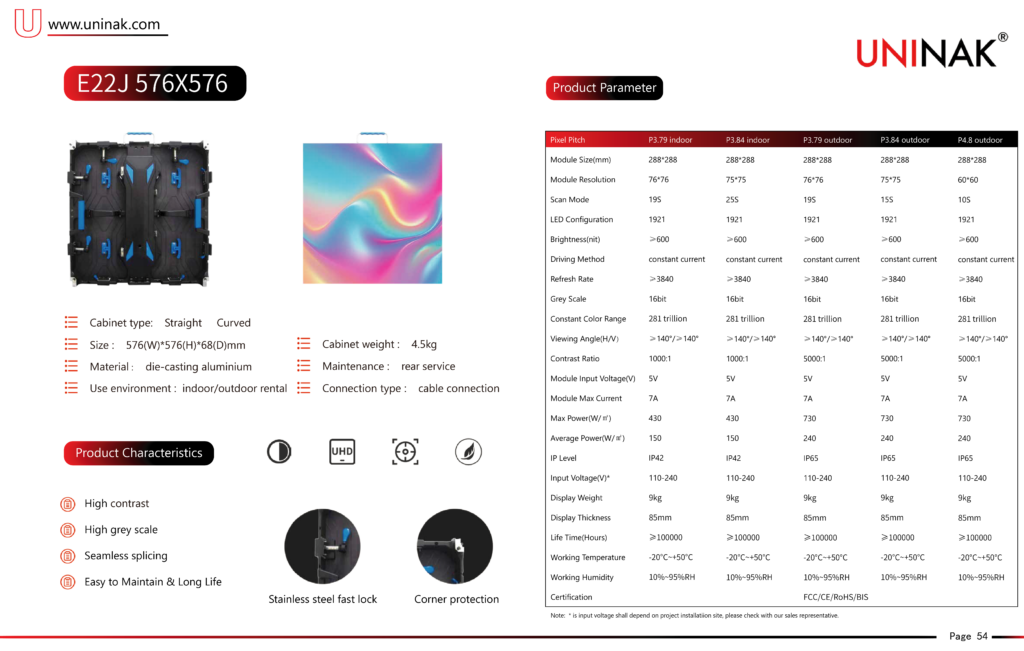

- Product Parameter
| Pixel Pitch | P3.79 indoor | P3.84 indoor | P3.79 outdoor | P3.84 outdoor | P4.8 outdoor |
| Module Size(mm) | 288*288 | 288*288 | 288*288 | 288*288 | 288*288 |
| Module Resolution | 76*76 | 75*75 | 76*76 | 75*75 | 60*60 |
| Scan Mode | 19S | 25S | 19S | 15S | 10S |
| LED Configuration | 1921 | 1921 | 1921 | 1921 | 1921 |
| Brightness(nit) | >600 | >600 | >600 | >600 | >600 |
| Driving Method | constant currer | constant current | constant current | constant current | constant current |
| Refresh Rate | >3840 | >3840 | >3840 | >3840 | >3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | >140/>140° | |>140%/>140° | >140°/>140° | >140/>140° | >140°/>140° |
| Contrast Ratio | 1000:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Module Input Voltage(v | 5V | 5V | 5V | 5V | 5V |
| Module Max Current | 7A | 7A | 7A | 7A | 7A |
| Max Power(W/d) | 430 | 430 | 730 | 730 | 730 |
| Average Power(W/f’) | 150 | 150 | 240 | 240 | 240 |
| IP Level | IP42 | IP42 | IP65 | IP65 | 1P65 |
| Input Voltage(V)* | 110-240 | 110-240 | 110-240 | 110-240 | 110-240 |
| Display Weight | 9kg | 9kg | 9kg | 9kg | 9kg |
| Display Thickness | 85mm | 85mm | 85mm | 85mm | 85mm |
| Life Time(Hours) | >100000 | >100000 | >100000 | >100000 | >100000 |
| Working Temperature | -20°C~+50²℃ | -20°C~+50°℃ | -20°C-+50²C | -20°C~+50°℃ | -20²C-+50²C |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~956RH | 10%~956RH | 10%~95RH |
| Certification | FCC/CE/RoHS/BIS | ||||
